数据准备

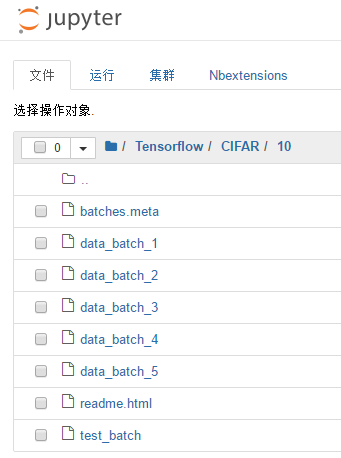

去官网下载好这些数据。然后解压
导入相关模块
import tensorflow as tf
import matplotlib.pyplot as plt
import numpy as np
import pickle
%matplotlib inline写一个类，处理数据。这个类实现了独热标签、返回指定数量训练集、返回测试集
class Cifar:
def __init__(self, onehot = False):
self.debug = False
self.onehot= onehot
self.CIFAR = './CIFAR/10/'
self.current_batch_lib = 1
self.current_batch_idx_start = 0
self.label_name = np.load(self.CIFAR + "batches.meta")['label_names']
self.label_name_cn=['灰机', '汽车', '鸟', '喵', '长脖怪', '大黄', '蛤膜', '马', '船', '卡车']
self.batch_data, self.batch_label = self.__get_batch(self.current_batch_lib)
#获取标签对应英文名称
#参数：标签序号
#返回：英文名
def label_name(self, label):
return self.label_name[label]
#私有方法，获取一个文件的batch
#参数第几个batch文件
#返回RGB通道图像和标签
def __get_batch(self, idx):
data, label = np.array([]), np.array([])
file = self.CIFAR + 'data_batch_' + str(idx)
if idx == 'test_batch':
file = self.CIFAR + 'test_batch'
if self.debug:
print('unpickleing ', file)
with open(file, 'rb') as fo:
dic = pickle.load(fo,encoding='bytes')
fo.close()
data = np.array(dic[b'data']) / 255
label= dic[b'labels']
return data.reshape(10000, 3, 32, 32).transpose(0, 2, 3, 1), np.array(label)
#私有方法，label转独热码
#参数：标签
#返回独热码
def __label_onehot(self, labels):
hot = np.zeros((len(labels), 10))
index_offset = np.arange(len(labels)) * 10
hot.flat[index_offset + labels.ravel()] = 1
return hot
#获取size大小的训练集
#参数：训练集大小
#返回：（RGB图像，标签）。注：当前batch不够时，返回的训练集数量可能小于size
def get_next_batch(self, size = 50):
if self.current_batch_idx_start >= len(self.batch_label): #当前batch不够用
self.current_batch_lib = self.current_batch_lib + 1
if self.current_batch_lib > 5: #5个文件全搞过了，返回第1个文件重新来
self.current_batch_lib -= 5
self.current_batch_idx_start = 0
self.batch_data, self.batch_label = self.__get_batch(self.current_batch_lib)
if self.debug:
print('getting data in %d lib, offset: %d' % (self.current_batch_lib, self.current_batch_idx_start))
if self.onehot: #是否独热
ret = self.batch_data[self.current_batch_idx_start:self.current_batch_idx_start + size], \
self.__label_onehot(self.batch_label[self.current_batch_idx_start:self.current_batch_idx_start + size])
else:
ret = self.batch_data[self.current_batch_idx_start:self.current_batch_idx_start + size], \
self.batch_label[self.current_batch_idx_start:self.current_batch_idx_start + size]
self.current_batch_idx_start += size #更新偏移
return ret
def get_test_batch(self):
test_batch = self.__get_batch('test_batch')
if self.onehot:
return test_batch[0], self.__label_onehot(test_batch[1])
return test_batch定义几个创建tf矩阵和执行卷积、池化运算的函数
#创建tf权重矩阵
def get_weight_var(shape, stddev):
return tf.Variable(tf.truncated_normal(shape, stddev=stddev))
#创建tf偏置项
def get_bias_var(shape):
return tf.Variable(tf.constant(0.1), shape)
#执行卷积运算
def conv2d(tensor, weight):
return tf.nn.conv2d(tensor, weight, strides=[1, 1, 1, 1], padding="SAME")
#最大池化
def max_pool(tensor):
return tf.nn.max_pool(tensor, ksize=[1, 3, 3, 1], strides=[1, 2, 2, 1], padding="SAME")搭建一个两个卷积层、两个全连接层、带有dropout的卷积神经网络
X = tf.placeholder(tf.float32, [None, 32, 32, 3])
Y = tf.placeholder(tf.float32, [None, 10])
#第一个卷积层
weight1 = get_weight_var([5, 5, 3, 64], 0.05)
bias1 = get_bias_var([64])
conv1 = conv2d(X, weight1) + bias1
pool1 = max_pool(conv1)
active1 = tf.nn.lrn(pool1, 4, bias=1.0, alpha=0.001 / 9, beta=0.75)
#第二个卷积层
weight2 = get_weight_var([5, 5, 64, 64], 0.05)
bias2 = get_bias_var([64])
conv2 = conv2d(pool1, weight2) + bias2
active2 = tf.nn.lrn(conv2, 4, bias=1.0, alpha=0.01 / 9, beta=0.75)
pool2 = max_pool(active2)
#第三个全连接层
keep_prob = tf.placeholder("float")
input3 = tf.reshape(pool2, [-1, 8*8*64])
weight3 = get_weight_var([8*8*64, 128], 0.04)
bias3 = get_bias_var([128])
output3 = tf.matmul(input3, weight3) + bias3
tf.nn.dropout(output3, keep_prob)
active3 = tf.nn.relu(output3)
#第四个全连接层
weight4 = get_weight_var([128, 10], 0.1)
bias4 = get_bias_var([10])
output4 = tf.matmul(active3, weight4) + bias4
y_ = tf.nn.softmax(output4)
#损失函数
loss = tf.reduce_mean(tf.nn.softmax_cross_entropy_with_logits(labels = Y, logits = y_))
train_step = tf.train.AdamOptimizer(1e-4).minimize(loss)
#准确率
correct_prediction = tf.equal(tf.argmax(y_,1), tf.argmax(Y,1))
accuracy = tf.reduce_mean(tf.cast(correct_prediction, "float"))
#去除注释，运行代码块，sess将被重载！提前保存好
sess = tf.Session()
sess.run(tf.initialize_all_variables())
cifar = Cifar(onehot=True)开始训练！
#训练
for i in range(10000):
batch_xs, batch_ys = cifar.get_next_batch(50)
sess.run(train_step, feed_dict={ X:batch_xs, Y:batch_ys, keep_prob:0.7 })
if i % 100 == 0:
print("iter:%d\tloss:%g accuracy:%g" % (i, \
sess.run(loss, feed_dict={ X:batch_xs, Y:batch_ys, keep_prob:1 }), \
sess.run(accuracy, feed_dict={ X:batch_xs, Y:batch_ys, keep_prob:1 })))这里训练次数越大越好。我在垃圾服务器上运行了30分钟才迭代完3000次。。

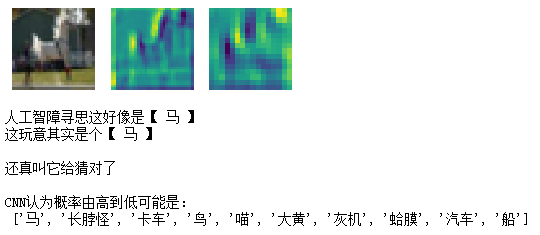

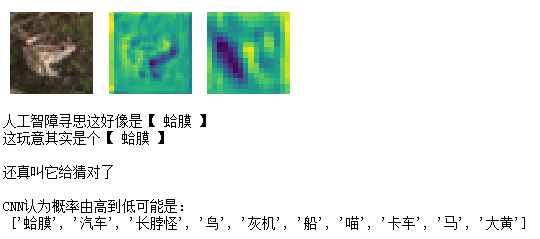

看一看我们的CNN是什么效果
#输出一个样本
batch_xs, batch_ys = cifar.get_next_batch(1)
plt.figure("show pickle", figsize=(5,5))
plt.subplot(131)
plt.imshow(batch_xs[0])
plt.axis('off')
plt.subplot(132)
plt.imshow(sess.run(conv1, feed_dict={ X:batch_xs, Y:batch_ys })[0].T[2].T)
plt.axis('off')
plt.subplot(133)
plt.imshow(sess.run(conv2, feed_dict={ X:batch_xs, Y:batch_ys })[0].T[2].T)
plt.axis('off')
plt.show()
y_actual = np.where(batch_ys[0] == 1)[0][0]
y_cnn = sess.run(tf.argmax(y_, 1), feed_dict={ X:batch_xs, Y:batch_ys, keep_prob:1.0 })[0]
print("人工智障寻思这好像是【", cifar.label_name_cn[y_cnn], "】")
print("这玩意其实是个【", cifar.label_name_cn[y_actual], "】")
if y_actual == y_cnn:
print("\n还真叫它给猜对了\n")
else:
print("\n这个傻玩意，一会再让他学习10万次\n")
pred_p = sess.run(y_, feed_dict={ X:batch_xs, Y:batch_ys, keep_prob:1.0 })[0]
pred_p_cn = [cifar.label_name_cn[x] for x in pred_p.argsort()]
pred_p_cn.reverse()
print("CNN认为概率由高到低可能是：\n", pred_p_cn)
保存我们的模型
#保存模型 ！！！！会覆盖之前保存的，谨慎使用
if input("Enter YES to save") == "YES":
saver=tf.train.Saver(max_to_keep=1)
saver.save(sess,'./model/10.ckpt')
else:
print('canceled')以后可以用下面的代码恢复模型
#恢复模型！！！！谨慎使用
if input("Enter YES to restore") == "YES":
saver=tf.train.Saver(max_to_keep=1)
model_file=tf.train.latest_checkpoint('./model/')
saver.restore(sess,model_file)
else:
print('canceled')下面的代码可以测试模型在测试集上的准确率
test_xs, test_ys = cifar.get_test_batch()
print(sess.run(accuracy, feed_dict = { X:test_xs, Y:test_ys, keep_prob:1.0 }))
这个模型我跑出来的准确率是0.6282
